Key Features

1. High Power Output:

   • Provides a substantial power output of 5.5kVA (5.5kW), making it ideal for powering a range of household or business appliances and systems.

2. 48V System:

   • Operates on a 48V system, which is efficient and compatible with many solar battery configurations, ensuring optimal energy storage and usage.

3. Hybrid Functionality:

   • Capable of operating as both an off-grid and grid-tie inverter, offering flexibility in power management and energy independence.

4. Advanced MPPT Technology:

   • Equipped with Maximum Power Point Tracking (MPPT) technology, which optimizes the energy harvest from solar panels, increasing overall system efficiency.

5. LCD Display:

   • Features a user-friendly LCD display for easy monitoring of system performance, including real-time data on power production, consumption, and battery status.

6. Durable and Reliable:

   • Built with high-quality materials and designed to withstand various environmental conditions, ensuring long-term durability and reliability.

7. Comprehensive Protection Features:

   • Includes a range of protection mechanisms such as overload protection, short circuit protection, over-temperature protection, and more, safeguarding both the inverter and connected devices.

Benefits

1. Energy Efficiency:

   • High efficiency in converting solar energy to usable power, reducing energy losses and maximizing the effectiveness of the solar power system.

2. Versatility:

   • Suitable for a wide range of applications, from residential homes to commercial buildings and agricultural setups, providing reliable power wherever it is needed.

3. Cost-Effective:

   • Helps in reducing electricity bills by optimizing the use of solar power and storing excess energy for later use, thus offering significant cost savings over time.

4. Ease of Use:

   • The intuitive LCD interface and user-friendly controls make it easy to monitor and manage the system, ensuring hassle-free operation.

5. Sustainability:

   • Promotes the use of renewable energy, contributing to a reduction in carbon footprint and supporting sustainable energy practices.

Technical Specifications

• Single Phase Non-Parallel Pure Sine Wave Inverter
• AC Output 5500W
• Output Power Factor 1.0
• DC Input 48VDV 127A
• DC Output 54VDC
• Maximum AC Charge Current 60A
• Maximum Charge Current (PV+AC) 100A
• Minimum Solar PV Voltage 120VDC
• Maximum Solar PV DC Voltage 500VDC
• Max PV Array Power: 5500W
• Rated Power: 5.5kVA (5.5kW)
• DC Input Voltage: 48V
• AC Output Voltage: 230V
• Frequency: 50Hz/60Hz
• MPPT Efficiency: > 99%
• Peak Efficiency: 98%
• Operating Temperature Range: -10°C to 50°C
• Dimensions: Varies by model
• Weight: Approximately 20kg
• Communication Interface: RS232/RS485/USB (optional)
• Certifications: CE, ISO, and other relevant standards

Applications

1. Residential Solar Systems:

   • Provides reliable power for homes, ensuring continuous energy supply and reducing dependence on the grid.

2. Commercial Solar Installations:

   • Supports business operations by providing a stable and efficient power source, helping to manage energy costs effectively.

3. Agricultural Solar Solutions:

   • Powers irrigation systems, lighting, and other essential equipment in agricultural settings, promoting sustainable farming practices.

4. Off-Grid Living:

   • Ideal for remote areas where grid power is unavailable, offering a dependable and autonomous power solution.

5. Emergency Backup Power:

   • Serves as a reliable backup during power outages, ensuring that critical systems and appliances remain operational.

Installation and Integration

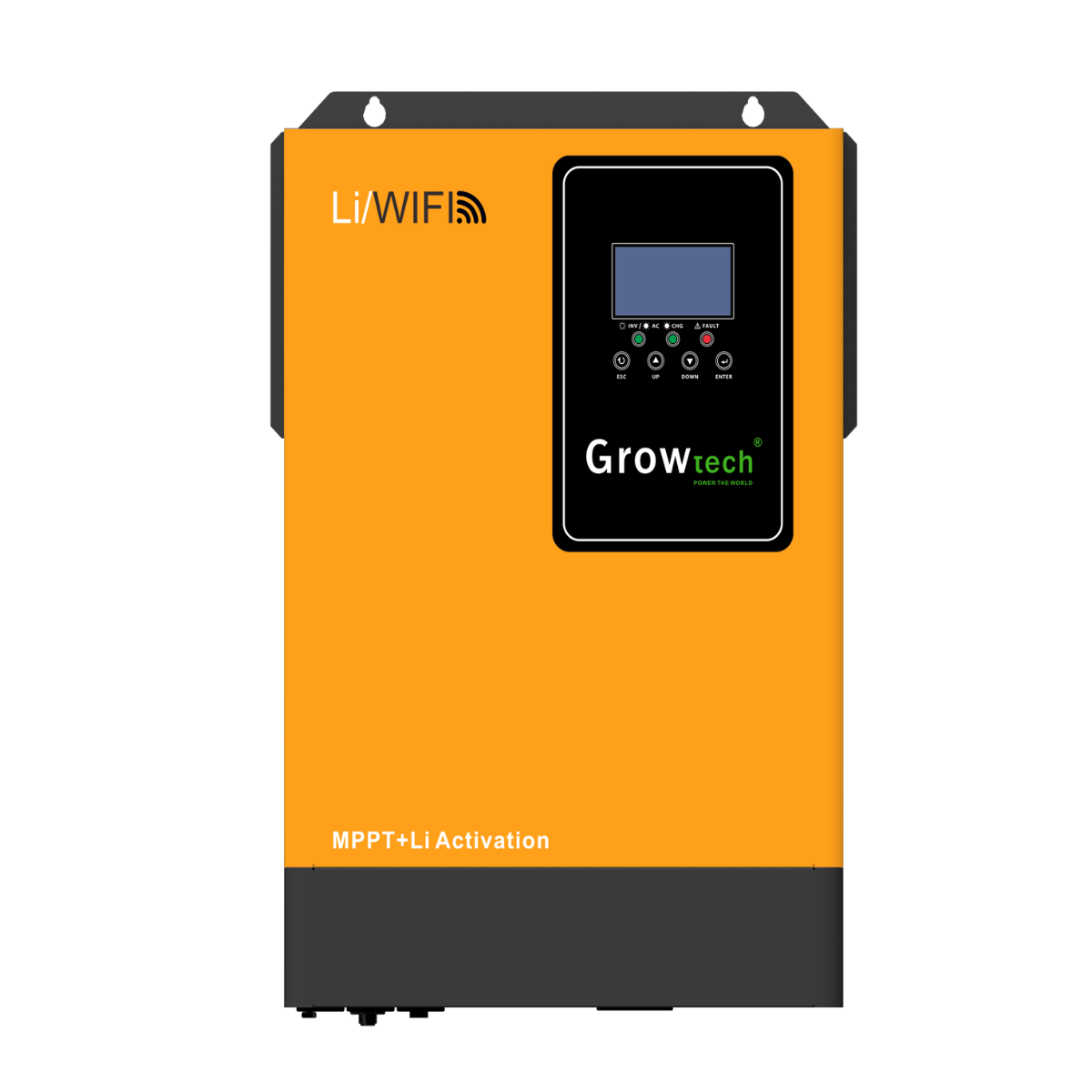

The growtech 48v inverter 5.5kva 5.5kw is designed for easy installation and integration into existing solar power systems. It can be connected to solar panels, batteries, and the grid (if required), providing a seamless transition between different power sources. Proper installation by a qualified technician ensures optimal performance and safety.

Maintenance and Support

Minimal maintenance is required for the growtech 5500 watts inverter, thanks to its robust design and high-quality components. Regular checks and cleaning can help maintain its efficiency and prolong its lifespan. This growtech hybrid inverter offers comprehensive customer support, including technical assistance and warranty services, to ensure customer satisfaction and reliable operation.

Conclusion

The growtech 48v hybrid inverter is a powerful, efficient, and versatile solution for solar energy systems. Its advanced features, robust design, and ease of use make it an excellent choice for anyone looking to harness the power of the sun for their energy needs. Whether for residential, commercial, or agricultural use, this inverter delivers reliable performance and significant energy savings, promoting a sustainable and eco-friendly lifestyle
